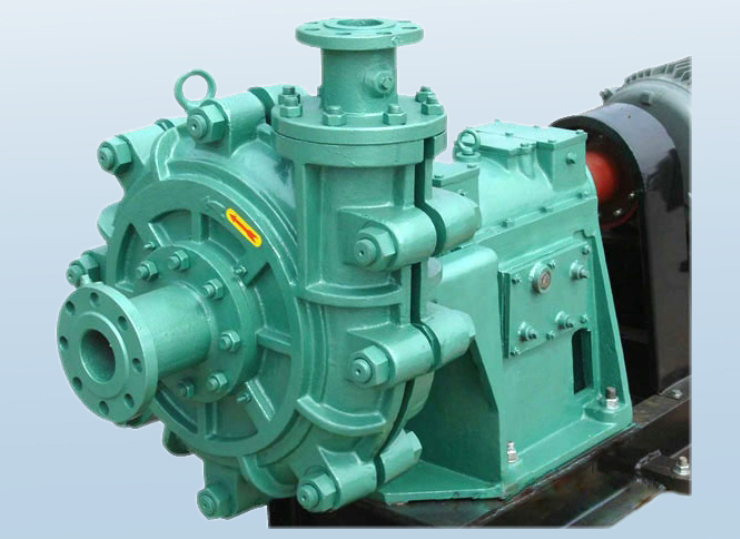

High head pressure mining slurry pump for and slurry long distance transfering with material of A05, Cr26,C27

Features:

1. CAD modern design, super hydraulic performance, and lower abrasion rate;
2. High efficiency: up to 81%
3. High head: up to 100 m
4. Wide passage, non-clogging and good performance of NPSH;
5. Expeller seal combined with packing seal and mechanical seal have been adopted to guarantee the slurry from leakage;
6. Reliability design ensures long MTBF (mean time between events);
7. Adopting metric bearing with oil lubrication, reasonable lubrication and cooling systems to ensure the bearing to run on the status of low temperature;
8. The wet parts are made of special material which has good performance of abrasion-resistant and corrosive resistant;
9. The pumps can be used for seawater -removing to prevent it from the corrosion of seawater, salt and mist, and electrochemical corrsion;
10. The pumps can be installed in series with multi-stage within allowable pressure.

Compared with AH slurry pumps:

1. Thicker liners and impeller for a better wear life;

2. High capacity frame and bearing to reduce potential running problems;

3. Higher efficiency and higher discharge head for advanced impeller design;

4. Direct coupled, not V belt. Flow rates and discharge heads changes with different impeller diameter;

5. WS slurry pumps can replace AHP slurry pumps for series pumping.

Applications:

They are widely used for handling the mixture of abrasive and corrosive solids in the field of metallurgy industry, mining industry, and chemical industry, special for handling and sludge of electric power station.

Wet parts:

Material: the same wear resistant high chrome alloy with AH slurry pumps.

The wet parts of WG and WG(P) pump at the same outlet diameter can be interchangeable. Their outline installation dimensions are one and the same.

Frame:

For the drive part of the WG(P)series slurry pumps, the horizontal split frame with oil lubrication and two sets of cooling systems inside and outside has been adopt. If necessary, cooling water can be supplied.

Seal:

Two kinds of shaft seal--expeller seal combined with packing seal and mechanical seal.

The mechanical seal supplied with high pressure sealing water is recommended when the slurry pump is operated in series (two stages and above two stages), and the expeller seal combined with packing seal is used in single-stage.

Slurry Pump Part Material

Shijiazhuang Aier Machinery Co., Ltd. is a large-scale professional manufacturer of slurry pumps, gravel pumps, dredge pumps, sewage pumps and clean water pumps in China.

All products are mainly supplied to environmental protection, wastewater treatment, urban water supply and drainage, mine, metallurgy, coal, petrochemical, building material, thermal power FGD, river dredging, tailing disposal and other fields. The products are selling well in China and sold far to Germany, U.S., Canada, Australia, Russia, Ukraine, Kazakhstan, Brasil, Chile, Argentina, Bolivia, Malaysia, Indonesia, India, Poland, South Africa, Tanzania, etc.

Our firm has strong technical force and is specially engaged in the research of abrasion resistant materials of slurry pumps, sewage pumps and water pumps and the development of new products. The materials include high chrome white iron, duplex stainless steel, stainless steel, ductile iron, rubber, etc.

We use CFD, CAD method for product design and process design based absorbing experience of world leading pump companies. We integrate molding, smelting, casting, heat treatment, machining and chemical analysis, and have professional engineering and technical personnel.

Our company started to build our new factory in 2013 and finished in Spring of 2014. The new factory is located in Lincheng Xingtai Hebei, covering 67,000 m² and of annual design annual casting capacity 3,000 tons. In the new factory, we can produce different parts from small to huge. Casting & machining orders are welcome as well.
