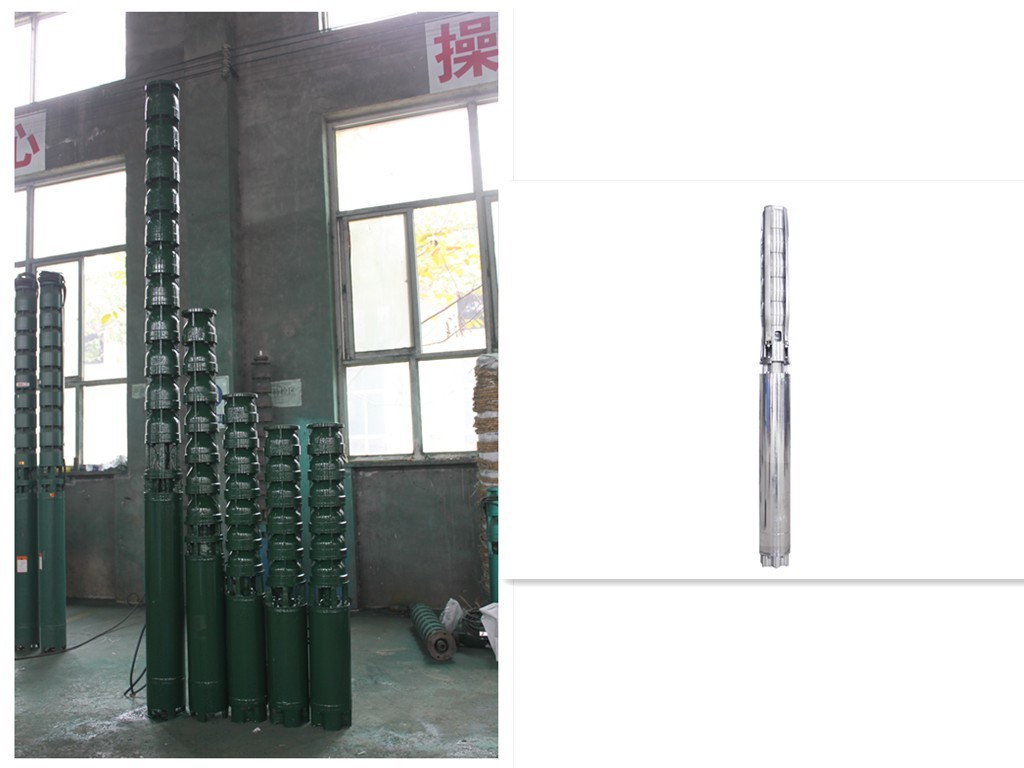

Corrison resistant hot water submersible borehole pump for mining dewatering, hot spring water supply

Hot water Submersible borehole pumps Appliance :

1. Working condition

1.) 380V/440v/660v voltage deviation is no more than ±5%,frequency is 50HZ/60HZ, three -phase power deviation is no more than ±1%.

2.) Motor cavity must be filled with clean water.

3.) The first stage impeller of the pump should be more than 2mm below the moving water surface, pump should be less than 70m below the static water level.

4.) The distance from the motor bottom to well bottom must be more than 2 m.

5.) Water temperature should be no more than 110°C.

6.) Sand content of the water no more than 0.01%.

7.) PH value of water 6.5-8.5.

8.) Hydrogen sulfide content of the water should be no more than 1.5mg/L.

9.) Chloride ion content of the water should be no more than 400mg/L.

10.) Water yield of water source should ensure the requirements of pump continuous working

2. tech parameter :

a) Caliber: DN150mm-DN400mm
b) Flow: 5-1000m3/hr
c) Head: 10-1000 m
d) Rotate speed:1450-2850r/min
e) Motor power: 0.55-400 KW
f) Working temperature: -15-110°C

3, Main features

a) Submersible motor adapts YQS type water-filled wet structure, internal chamber was filled with water for cooling the motor and lubricating the bearing.
b) For preventing the sand getting into the motor, the sand-preventing unit including sand slinger and skeleton oil-sealed was installed in the upper part of motor, the whole motor was sealed tightly.
c) There are water injection hole and exhaust hole in the upper part of the motor and discharge hole in the lower part.
d) There are thrust bearing and thrust collar, mainly for sustaining remnant axial force of pump and the empty weight of motors rotor.
e) The winding of motor stator adopts water-proof electromagnetic wire with good insulating and water-proof functions and rotor adopts squirrel-cage structure.

Technology Parameters

Shijiazhuang Aier Machinery Co., Ltd. is a large-scale professional manufacturer of slurry pumps, gravel pumps, dredge pumps, sewage pumps and clean water pumps in China.

All products are mainly supplied to environmental protection, wastewater treatment, urban water supply and drainage, mine, metallurgy, coal, petrochemical, building material, thermal power FGD, river dredging, tailing disposal and other fields. The products are selling well in China and sold far to Germany, U.S., Canada, Australia, Russia, Ukraine, Kazakhstan, Brasil, Chile, Argentina, Bolivia, Malaysia, Indonesia, India, Poland, South Africa, Tanzania, etc.

Our firm has strong technical force and is specially engaged in the research of abrasion resistant materials of slurry pumps, sewage pumps and water pumps and the development of new products. The materials include high chrome white iron, duplex stainless steel, stainless steel, ductile iron, rubber, etc.

We use CFD, CAD method for product design and process design based absorbing experience of world leading pump companies. We integrate molding, smelting, casting, heat treatment, machining and chemical analysis, and have professional engineering and technical personnel.

Our company started to build our new factory in 2013 and finished in Spring of 2014. The new factory is located in Lincheng Xingtai Hebei, covering 67,000 m² and of annual design annual casting capacity 3,000 tons. In the new factory, we can produce different parts from small to huge. Casting & machining orders are welcome as well.
