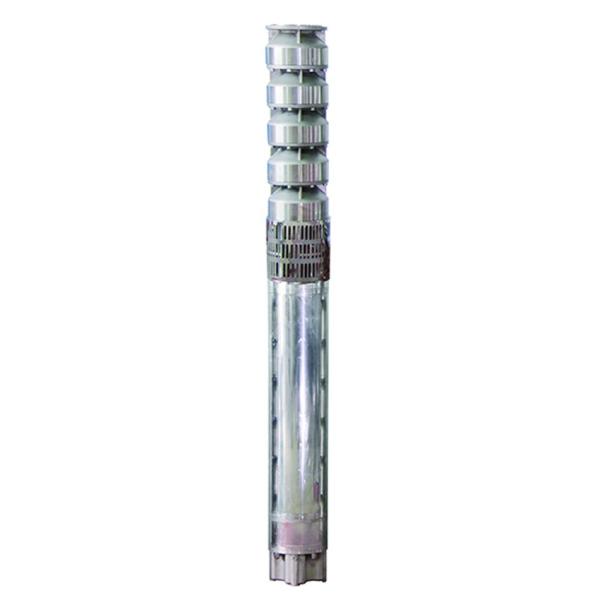

Dewatering irrigation submersible borehole pump

Application
QJ series deep well submersible pump consists of the electrical machinery and the pump body. It is widely used it hydraulic engineering facility, for example sea water transfering, irrigation on farmland , draining water in industry and mining enterprise: architectural engineering precipitation ,also in cooling system of river, reservoir, eruptive fountain, hot spring bathing place: and so on. .It's main characteristic is that the combination of pump and electrical machinery, working in the deep water, easy to use, repairs, with great efficiency, also safe and reliable.

Operate Condition
1. power source:380v,3ph,50hz
2. water qualities
not above 25ºC(85ºC for the type of heat-resisting)

3. the water pump must be fully filled with clean water is used in water completely.
4. the install depth can not exceed the fixed lift 20%;abd reqyure the wall of the well smooth and straight.

Model signification:
200QJ32-91/7
200------Base No.
QJ--------Submersible Pump
32--------Pump Flow
91--------Pump Head
7----------Impellers

Material

Rewinding wire: 100% copper wire

Motor shell: Cast iron or stainless steel

Bowl: Cast iron or stainless steel

Impeller: Cast iron or bronze, stainless steel

Shaft: Steel or stainless steel

Product parameter:
1. Flow range: Q=5-500 m3/h
2. Lift range: H=15-1500m
3. Diameter range: 125--400mm
4. Temperature range: -15 -100° C
