    Eco Friendly Industrial Pump Parts Centrifugal Pump Impeller Horizontal Type

    Ask Lasest Price
    Brand Name : Aier
    Model Number : WA, WG, WY, WZ, WL
    Price :
    Payment Terms : T/T, L/C
    Supply Ability : 200 PER MONTH
    Delivery Time : 20-40 DAYS
    • Product Details
    • Company Profile

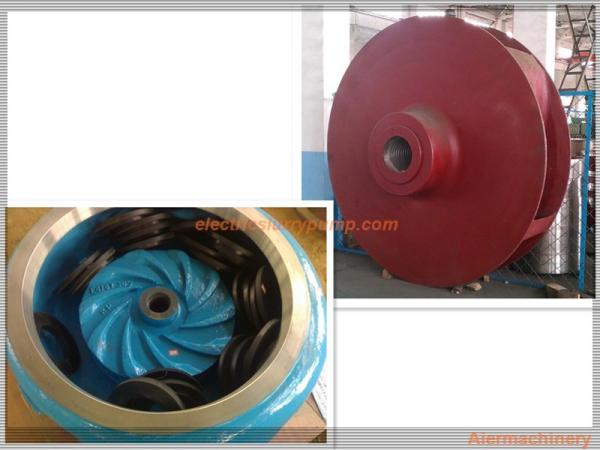

    Eco Friendly Industrial Pump Parts Centrifugal Pump Impeller Horizontal Type

    Slurry pump impeller of anti-abrasion and wear resistand material high chrome cast irom A05, A49, Cr27 Cr26


    More than 10 years slurry pump and parts manufacture experience


    1. Slurry pump parts

    Completely interchangeable with slurry pumps and gravel pumps

    For unlisted slurry pump parts, OEM service offered---Drawings needed.

    - Impeller

    - Metal Liner

    - Rubber Liner

    - Bearing Assembly

    - Base

    - Pump Volute;

    - Cover Plate & Frame Plate

    - Others


    The pump impeller is made of rubber or metal, and the metal liner and rubber liner are interchangeable .The back vane can reduce the sealing pressure ,and it can also cut down backflow to the largest extent at the same time .On the other hand ,cast-in impeller threads are more suitable for slurry .


    2. Materials

    High chrome alloy: A05, A07, A33, A49, etc.

    Natural rubber: R08, R26, R33, , etc.

    Other material as per requests, like stainless steel, duplex stainless steel, Nickle alloy, Alloy 20, etc.


    Slurry Pump Part Material


    Part NameMaterialSpecificationHRCApplicationOEM Code
    Liners & ImpellerMetalAB27: 23%-30% chrome white iron≥56Used for higher wear condition with pH between 5 and 12A05
    AB15: 14%-18% chrome white iron≥59Used for higher wear conditionA07
    AB29: 27%-29% chrome white iron43Used for lower pH condition especially for FGD. It also can be used for low-sour condition and desulfuration installation with pH no less than 4A49
    AB33: 33%-37% chrome white iron It can transport oxygenated slurry with pH not be less than 1 such as phospor-plaster, nitric acid, vitriol, phosphate etc.A33
    Rubber   R08
       R26
       R33

    Expeller & expeller ringMetalB27: 23%-30% chrome white iron≥56Used for higher wear condition with pH between 5 and 12A05
    Grey iron  G01

    Eco Friendly Industrial Pump Parts Centrifugal Pump Impeller Horizontal TypeEco Friendly Industrial Pump Parts Centrifugal Pump Impeller Horizontal Type
