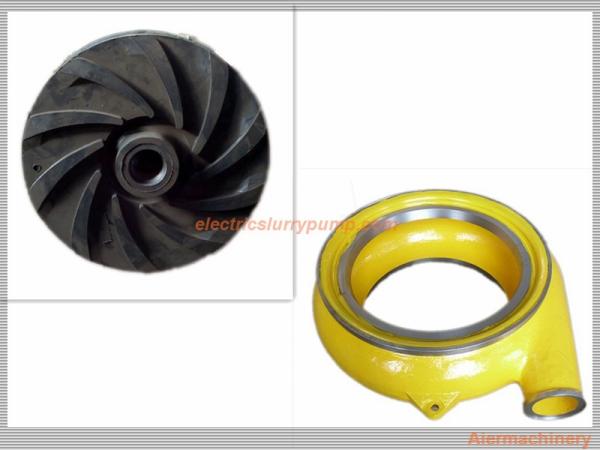

Anti-acid Centrifugal Slurry Pump Parts

Pump Description

Specification:

1. Outlet: 25mm - 750mm

2. Solid diameter: 1mm - 400mm

3. Motor power: 2.2kw - 2500kw

4. Head: 1m - 100m

5. Capacity: 5 -15000 m3/h

6. Density: 10% - 80%

7. Material: M/MR/MMR

8. Duty: Heavy

9. Wet Parts Material: High-chrome alloy; highly wear-resistant rubber

10. Application: Mining and mineral processing in non-ferrous and ferrous mines

Features:

1. Bearing assembly: large diameter shaft with short overhang contributes to long bearing life.

2. Liners: Easily replaceable liners are bolted, not glued to the casing for positive maintenance.

3. Casing: Casing halves of cast or ductile iron provides high operating pressure capabilities.

4. Impeller: Front and rear shrouds have pump out vanes that reduce recirculation and seal contamination.

5. Throat bush: Wear is reduced and maintenance simplified by the use of tapered.

Slurry pump parts--packing (pump seal)

The sealing method contains packing seal, centrifugal seal and mechanical seal. The packing is usually used for packing seal and centrifugal seal, and our product has different models .Clients are recommended to buy two boxes of packing at one time which are sufficient for one pump

Slurry pump spare pats-Volute liner

This is volute liner for slurry pump with excellent wear resistance, corrosion resistance and large passage area.
Good casing design makes maintenance easily and cost much lower. Advanced heat treat technology is used to treat high chrome alloy and results with a compact micro-structure and a high quality product.

Slurry pump parts-bearing assembly

Bearing assembly uses cylindrical structure, adjusting the space between impeller & front liner easily, being removed completely when being repaired.

Shijiazhuang Aier Machinery Co., Ltd. is a large-scale professional manufacturer of slurry pumps, gravel pumps, dredge pumps, sewage pumps and clean water pumps in China.

All products are mainly supplied to environmental protection, wastewater treatment, urban water supply and drainage, mine, metallurgy, coal, petrochemical, building material, thermal power FGD, river dredging, tailing disposal and other fields. The products are selling well in China and sold far to Germany, U.S., Canada, Australia, Russia, Ukraine, Kazakhstan, Brasil, Chile, Argentina, Bolivia, Malaysia, Indonesia, India, Poland, South Africa, Tanzania, etc.

Our firm has strong technical force and is specially engaged in the research of abrasion resistant materials of slurry pumps, sewage pumps and water pumps and the development of new products. The materials include high chrome white iron, duplex stainless steel, stainless steel, ductile iron, rubber, etc.

We use CFD, CAD method for product design and process design based absorbing experience of world leading pump companies. We integrate molding, smelting, casting, heat treatment, machining and chemical analysis, and have professional engineering and technical personnel.

Our company started to build our new factory in 2013 and finished in Spring of 2014. The new factory is located in Lincheng Xingtai Hebei, covering 67,000 m² and of annual design annual casting capacity 3,000 tons. In the new factory, we can produce different parts from small to huge. Casting & machining orders are welcome as well.
