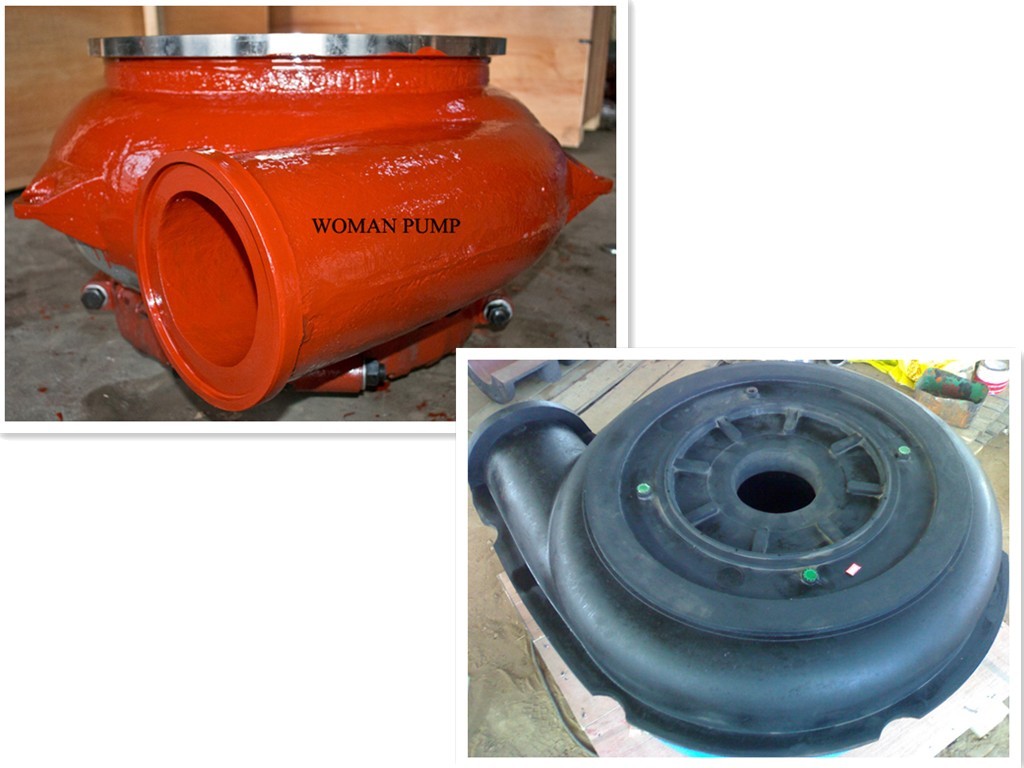

Cast Iron Centrifugal Slurry Pump Part High Chrome cast material of
A05, A49, A30 or natural rubber
Sand slurry pump parts Introduction
These parts are all standard parts and fit to most standard slurry
pumps perfectly and interchangeable with most brands pump parts.
High chrome metal and rubber parts for slurry pump series (, HH,
SP, G, L, ZJ, M models) are avalaible. Various kind of centrifugal
mining slurry pumps spare parts, such as Slurry Pump
- Rubber / metal Impeller,
- Metal / Natural rubber liners,
- Expeller,
- Impeller,
- Throat bush,
- Front liner, Back liner,
- Wear plate,
- Case, cover,
- Stuffing box,
- Lantern restrictor,
- Cover plate bolt,
- Volute,
- Throat bush, Shaft sleeve,
- Cover plate liner, Frame plate liner ,
- Neck ring,
- Expeller ring, Expeller,
- Bearing assembly,
- Volute liner, Volute packing,
- Bowl, bearing cartridge,
- Cover plate liner,
- Impeller,
2. Materials
High chrome alloy: A05, A07, A33, A49, etc.
Natural rubber: R08, R26, R33, , etc.
Other material as per requests, like stainless steel, duplex
stainless steel, Nickle alloy, Alloy 20, etc.
3. Short delivery time
For some slurry pump parts, stocks are available. We have large
producing capacity to shorten the delivery time.
4. OEM slurry pump part codes
Here we list some OEM part codes for reference:
Impeller: 127, 147, 145, etc., such as C2127, D3147, E4147, F6147,
G8147, G10147, FAM1247...
Volute liner, C2110, D3110, E4110, F6110, G10110, G12110, ...
5. Frame & Bearing Assembly types
Types: B, C, D, E, F, R, X, ST, T, TU, CC, DD, EE, FF, etc.
6. Notice for inquiry
Please send us complete slurry pump part name, part code and
material name.
We arrange express delivery for you for urgent needs, such as DHL,
Fedex, TNT.
Slurry Pump Part Material
| Part Name | Material | Specification | HRC | Application | OEM Code |
| Liners & Impeller | Metal | AB27: 23%-30% chrome white iron | ≥56 | Used for higher wear condition with pH between 5 and 12 | A05 |
| AB15: 14%-18% chrome white iron | ≥59 | Used for higher wear condition | A07 |
| AB29: 27%-29% chrome white iron | 43 | Used for lower pH condition especially for FGD. It also can be used
for low-sour condition and desulfuration installation with pH no
less than 4 | A49 |
| AB33: 33%-37% chrome white iron | | It can transport oxygenated slurry with pH not be less than 1 such
as phospor-plaster, nitric acid, vitriol, phosphate etc. | A33 |
| Rubber | | | | R08 |
| | | | R26 |
| | | | R33 |
| | | | |
| Expeller & expeller ring | Metal | B27: 23%-30% chrome white iron | ≥56 | Used for higher wear condition with pH between 5 and 12 | A05 |
| Grey iron | | | G01 |
| | | | | |
