    High Performance Foam Concentrate Transfer Pump Spare Parts Environmental Friendly

    Pump Specifications

    Foam Froth pumps
    High quality
    Good NPSH performance
    abrasion resistant

    4'' Elastomer lined flotation processing foam froth transfer pumps

    Naipu NP-AF froth pumps are of heavy duty construction ,designed for continuous pumping of highly abrasive and corrosive frothy slurries.They have a vertical shaft configuration,and comprise a hopper,with vertical bearing assembly,and Type "NP-"pump wet end.They feature a wide choice of replaceable abrasion resistant metal or moulded elastomer casing liners and impellers.

    Typical Applications-
    Minerals Flotation Processing
    Handle froth slurries

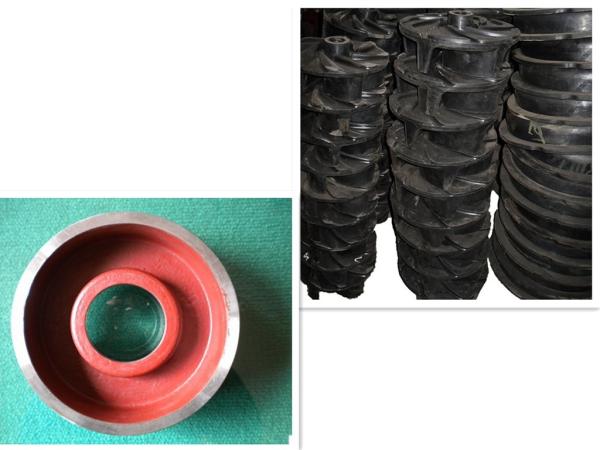

    1. pump parts
    Completely interchangeable with slurry pumps and gravel pumps
    For unlisted slurry pump parts, OEM service offered---Drawings needed.
    - Impeller
    - Metal Liner
    - Rubber Liner
    - Bearing Assembly
    - Base
    - Pump Volute;
    - Cover Plate & Frame Plate
    - Others

    Pump Part Material

    Part NameMaterialSpecificationHRCApplicationOEM Code
    Liners & ImpellerMetalAB27: 23%-30% chrome white iron≥56Used for higher wear condition with pH between 5 and 12A05
    AB15: 14%-18% chrome white iron≥59Used for higher wear conditionA07
    AB29: 27%-29% chrome white iron43Used for lower pH condition especially for FGD. It also can be used for low-sour condition and desulfuration installation with pH no less than 4A49
    AB33: 33%-37% chrome white iron It can transport oxygenated slurry with pH not be less than 1 such as phospor-plaster, nitric acid, vitriol, phosphate etc.A33
    Rubber   R08
       R26
       R33

    Expeller & expeller ringMetalB27: 23%-30% chrome white iron≥56Used for higher wear condition with pH between 5 and 12A05
    Grey iron  G01
    Stuffing BoxMetalAB27: 23%-30% chrome white iron≥56Used for higher wear condition with pH between 5 and 12A05
    Grey iron  G01
    Frame/Cover plate, bearing house & baseMetalGrey iron  G01
    Ductile iron  D21
    ShaftMetalCarbon steel  E05
    Shaft sleeve, lantern ring/resctrictor, neck ring, gland boltStainless steel4Cr13  C21
    304 SS  C22
    316 SS  C23
    Joint rings & sealsRubberButyl  S21
    EPDM rubber  S01
    Nitrile  S10
    Hypalon  S31
    Neoprene  S44/S42
    Viton  S50
