High chrome slurry pump parts of anti-wear A05, A49, Cr26,Cr27
material interchangable with international standard parts
Introduction of slurry pumps
The type of slurry pumps are using for handling strong abrasive,
high density slurry and low density, high head slurry in the
metallurgical, mining, coal, power, building material and other
industry departments etc.
The frame plate liners and impellers of slurry pumps are made of
wear-resistant metal. The frame plate liner and impeller for are
adoptable of hard metal or rubber
Features:
1. Casing and spare parts are all made of high chrome alloy (Cr26
Material) with anti-wear,anti-abrasive, longer life features.
2. High efficiency Capacity up to 1300m3/h, head up to 80m.
3. Widely used in sand sucking, gravel dredging and many kinds of
mining plant. Such as gold mining, lead mining and so on.
Slurry Pump&md;Application
slurry pump is suitable for processing the high abrasion slurry or
the material containing solid particles.
Metal smelting plant: convey slurry
Sand plant: transporting and conveying sand and gravel, feeding
sand and water all types of classification and dewatering plants
Coal preparation plant: classifying, screening and conveying heavy
medium, conveying coal pulp
Ceramics and glass factory: porcelain clay and sandstone
transportation, feeding hydrocyclone and effluent disposal etc.
Steel works: conveying slurry, rust and corrosive liquid etc.
Irrigation systems and dredging: silt removal in dams and river
bed, sand classifying
Note: please specify if applied where oil and chemicals are
contained

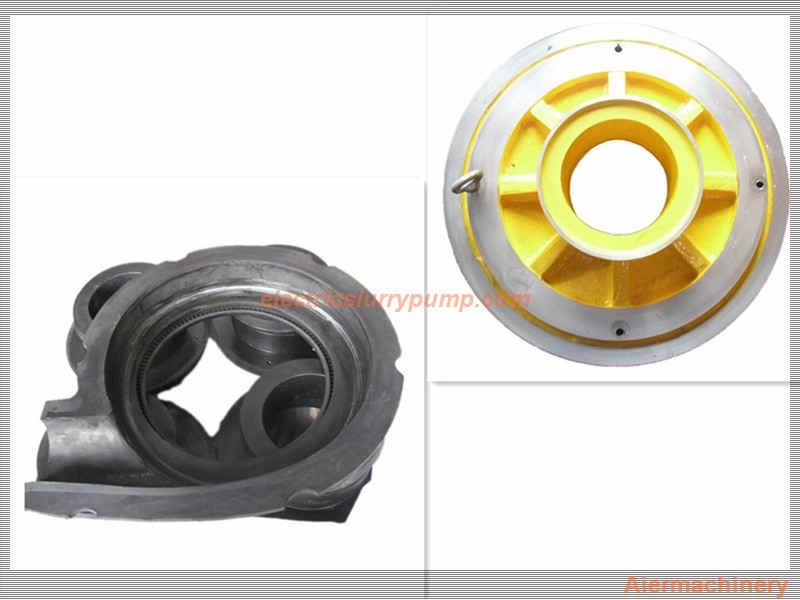

1. Slurry pump parts
Completely interchangeable with slurry pumps and gravel pumps
For unlisted slurry pump parts, OEM service offered---Drawings
needed.
- Impeller
- Metal Liner
- Rubber Liner
- Bearing Assembly
- Base
- Pump Volute;
- Cover Plate & Frame Plate
- Others
2. Materials
High chrome alloy: A05, A07, A33, A49, etc.
Natural rubber: R08, R26, R33, , etc.
Other material as per requests, like stainless steel, duplex
stainless steel, Nickle alloy, Alloy 20, etc.
3. Short delivery time
For some slurry pump parts, stocks are available. We have large
producing capacity to shorten the delivery time.
4. OEM slurry pump part codes
Here we list some OEM part codes for reference:
Impeller: 127, 147, 145, etc., such as C2127, D3147, E4147, F6147,
G8147, G10147, FAM1247...
Volute liner, C2110, D3110, E4110, F6110, G10110, G12110, ...
Slurry Pump Part Material
| Part Name | Material | Specification | HRC | Application | OEM Code |
| Liners & Impeller | Metal | AB27: 23%-30% chrome white iron | ≥56 | Used for higher wear condition with pH between 5 and 12 | A05 |
| AB15: 14%-18% chrome white iron | ≥59 | Used for higher wear condition | A07 |
| AB29: 27%-29% chrome white iron | 43 | Used for lower pH condition especially for FGD. It also can be used
for low-sour condition and desulfuration installation with pH no
less than 4 | A49 |
| AB33: 33%-37% chrome white iron | | It can transport oxygenated slurry with pH not be less than 1 such
as phospor-plaster, nitric acid, vitriol, phosphate etc. | A33 |
| Rubber | | | | R08 |
| | | | R26 |
| | | | R33 |
| | | | |
| Expeller & expeller ring | Metal | B27: 23%-30% chrome white iron | ≥56 | Used for higher wear condition with pH between 5 and 12 | A05 |
| Grey iron | | | G01 |
| Stuffing Box | Metal | AB27: 23%-30% chrome white iron | ≥56 | Used for higher wear condition with pH between 5 and 12 | A05 |
| Grey iron | | | G01 |
| Frame/Cover plate, bearing house & base | Metal | Grey iron | | | G01 |
| Ductile iron | | | D21 |
| Shaft | Metal | Carbon steel | | | E05 |
| Shaft sleeve, lantern ring/resctrictor, neck ring, gland bolt | Stainless steel | 4Cr13 | | | C21 |
| 304 SS | | | C22 |
| 316 SS | | | C23 |
| Joint rings & seals | Rubber | Butyl | | | S21 |
| EPDM rubber | | | S01 |
| Nitrile | | | S10 |
| Hypalon | | | S31 |
| Neoprene | | | S44/S42 |
| Viton | | | S50 |
