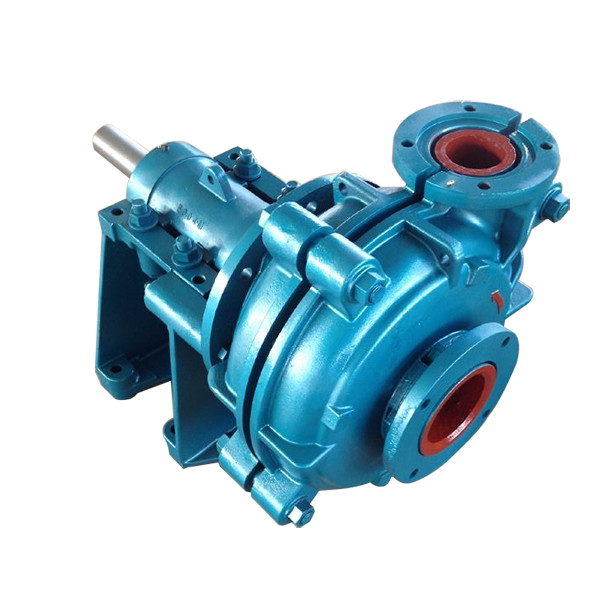

High chrome alloy single stage gold mining slurry pump
Application
Alumina, Copper mining, Iron ore, Gas oil, Coal ,Electric industry,
Phosphate, Bauxite, Gold, Pot, Wolfram, Water sewerage utilities,
Sugar, Tobacco, Chemical fertilizer .
Features
The frame plate for WA series pumps has interchangeable hard metal
or pressure moulded elastomer liners. The impellers are made of
hard metal or pressure moulded elastomer liners.
The shaft seals for WA series can be packing seal, centrifugal seal
or mechanical seal.
The discharge branch can be positioned at intervals of 45 degrees
by request and oriented to any eight positions to suit
installations and applications. There are many drive modes for
option, such as V-belt, flexible coupling, gearbox, hydraulic
coupler variable frequency, silicon controlled speed, etc. Among
them, the flexible shaft coupling drive and V-belt feature of low
cost and easy installation.
All the wet parts of the pump are interchangeable with most
international mining pumps.
1. Wide options of impeller
2. Wear resistant metal or rubber wet end parts with long service
life and high efficiency
3. Double casing slurry pump
4. Cantilevered horizontal centrifugal slurry pump.
5. Gland seal, centrifugal seal or mechanical seal.
6. Grease or oil lubrication
More than 10 years slurry pump and parts manufacture experience
1. Slurry pump parts
Completely interchangeable with slurry pumps and gravel pumps
For unlisted slurry pump parts, OEM service offered---Drawings
needed.
- Impeller
- Metal Liner
- Rubber Liner
- Bearing Assembly
- Base
- Pump Volute;
- Cover Plate & Frame Plate
- Others
2. Materials

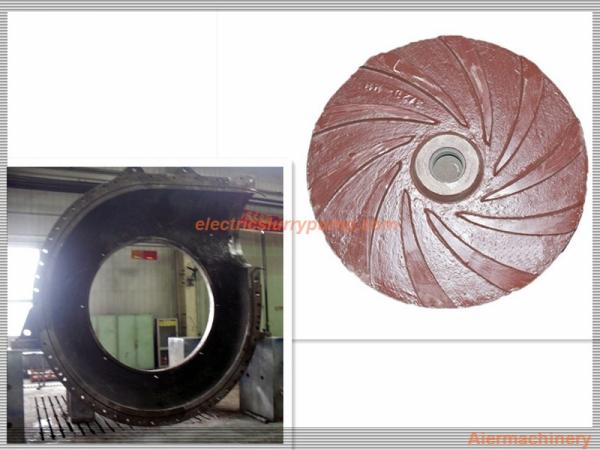

High chrome alloy: A05, A07, A33, A49, etc.

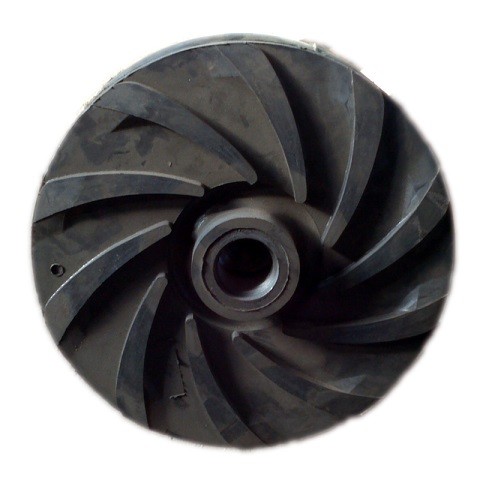

Natural rubber: R08, R26, R33, , etc.
Other material as per requests, like stainless steel, duplex
stainless steel, Nickle alloy, Alloy 20, etc.
3. Short delivery time
For some slurry pump parts, stocks are available. We have large
producing capacity to shorten the delivery time.
4. OEM slurry pump part codes
Here we list some OEM part codes for reference:

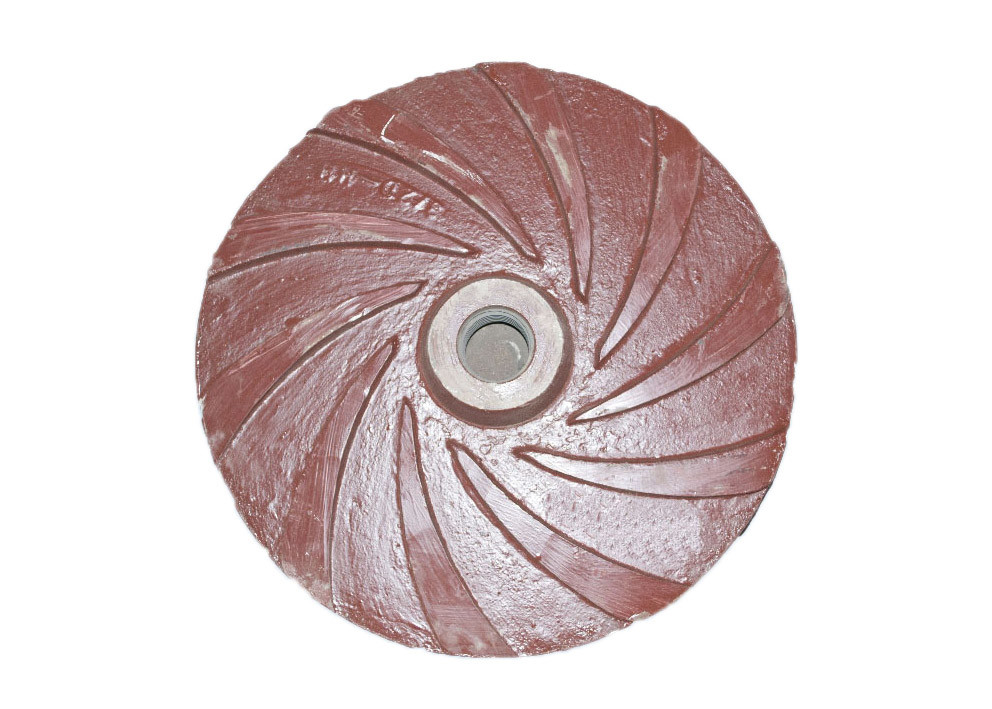

Impeller: 127, 147, 145, etc., such as C2127, D3147, E4147, F6147,
G8147, G10147, FAM1247...
Volute liner, C2110, D3110, E4110, F6110, G10110, G12110, ...
5. Frame & Bearing Assembly types
Types: B, C, D, E, F, R, X, ST, T, TU, CC, DD, EE, FF, etc.
Slurry Pump Part Material
| Part Name | Material | Specification | HRC | Application | OEM Code |
| Liners & Impeller | Metal | AB27: 23%-30% chrome white iron | ≥56 | Used for higher wear condition with pH between 5 and 12 | A05 |
| AB15: 14%-18% chrome white iron | ≥59 | Used for higher wear condition | A07 |
| AB29: 27%-29% chrome white iron | 43 | Used for lower pH condition especially for FGD. It also can be used
for low-sour condition and desulfuration installation with pH no
less than 4 | A49 |
| AB33: 33%-37% chrome white iron | | It can transport oxygenated slurry with pH not be less than 1 such
as phospor-plaster, nitric acid, vitriol, phosphate etc. | A33 |
| Rubber | | | | R08 |
| | | | R26 |
| | | | R33 |
| | | | |
| Expeller & expeller ring | Metal | B27: 23%-30% chrome white iron | ≥56 | Used for higher wear condition with pH between 5 and 12 | A05 |
| Grey iron | | | G01 |
| Stuffing Box | Metal | AB27: 23%-30% chrome white iron | ≥56 | Used for higher wear condition with pH between 5 and 12 | A05 |
| Grey iron | | | G01 |
| Frame/Cover plate, bearing house & base | Metal | Grey iron | | | G01 |
| Ductile iron | | | D21 |
| | | | | |
| Joint rings & seals | Rubber | Butyl | | | S21 |
| EPDM rubber | | | S01 |
| Nitrile | | | S10 |
| Hypalon | | | S31 |
| Neoprene | | | S44/S42 |
| Viton | | | S50 |
